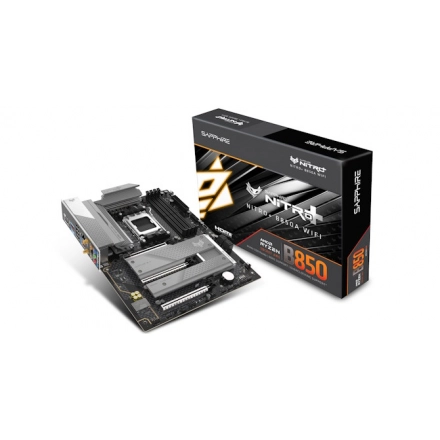

SAPPHIRE AMD B850A AM5 NITRO+ Ryzen R9/R7/R5 4x DDR5 8000MHz

AMD Socket AM5 Ryzen 7000, 9000

CPU Power: 12-phase
SOC Power: 2-phase
MISC Power: 1-phase

AMD B850

Supported
1× HDMI
1× DisplayPort

4× DIMM, Support up to 256 GB
2× Single Rank DDR5-8000 (OC)

512 Mbit AMI UEFI

1× PCIe Gen 5 x16 slot (x16, x8/x8, x8/x4/x4, x4/x4/x4/x4)
1× PCIe Gen 4 x16 slot (x4)
1× PCIe Gen 4 x16 slot (x2)

4× SATA 6 Gb/s
1× M.2 (PCIe Gen 5 x4)
2× M.2 (PCIe Gen 4 x4)

1× Realtek RTL8125 2.5 Gbps Ethernet
1× MediaTek MT7925BM22M Wi-Fi 7

BIOS Flashback button
1× 2.5 Gbps Ethernet
1× HDMI port
1× DisplayPort
/ 1× USB 3.2 Gen 2 10 Gbps (Type-C)
3× USB 3.2 Gen 2 10 Gbps (Type-A)
4× USB 2.0 (Type-A)
1× Wi-Fi antenna connectors
6× Audio jacks

1× Realtek ALC897 Codec

5× 4-pin

ATX Form Factor
12.0 × 9.6 in./30.5 × 24.4 cm
