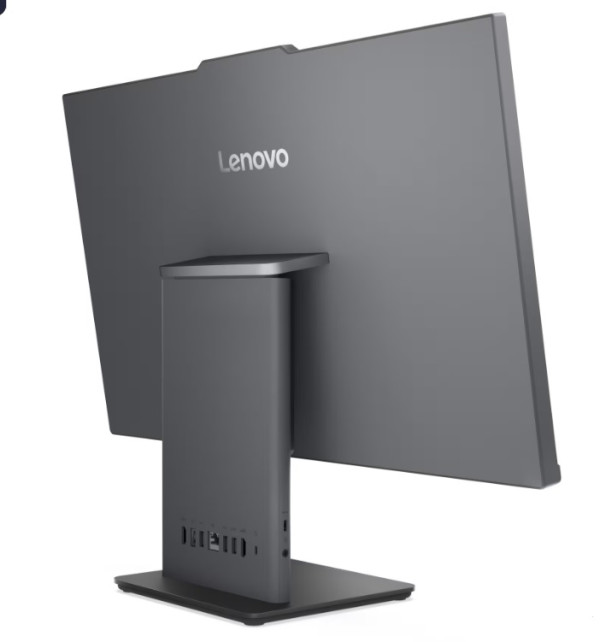

TC neo 50a 24 G5 AIO 24" FHD i7-13620H/16GB DDR5/M.2 512GB/GLAN/WLAN/5MpX K+M 3Y

TC neo 50a 24 G5 AIO 24" FHD i7-13620H/16GB DDR5/M.2 512GB/GLAN/WLAN/5MpX K+M 3Y

Processor

Intel Core i7-13620H, 10C (6P + 4E) / 16T, P-core 2.4 / 4.9GHz, E-core 1.8 / 3.6GHz, 24MB

Graphics

Integrated Intel UHD Graphics

Chipset

Intel SoC Platform

Memory

1x 16GB SO-DIMM DDR5-5200

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR5-5200

Storage

512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0

Storage Support

One drive, up to 1TB M.2 2280 SSD

Card Reader

No card reader

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek ALC233-CG codec

Speakers

3Wx2

Camera

5.0MP

Microphone

2x, Array

Power Supply

90W 89% Adapter

Display

23.8" FHD (1920x1080) IPS Anti-glare 250nits, 99% sRGB

Touchscreen

None

Keyboard

USB Calliope Keyboard, Black, Slovenian

Mouse

USB Calliope Mouse, Black

Expansion Slots

Two M.2 slots (one for WLAN, one for SSD)

Case Color

Luna Grey

Stand

Monitor Stand

Mounting

None

Wireless Charger

None

Form Factor

AIO (23.8 inches)

Dimensions (WxDxH)

540 x 192 x 431 mm (21.25 x 7.56 x 16.97 inches)

Weight

Around 6.0 kg (13.23 lbs)

WLAN + Bluetooth

Intel Wi-Fi 6 AX201, 802.11ax 2x2 + BT5.2

Ethernet

Integrated 100/1000M

Rear Ports

1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (Hi-Speed USB / USB 2.0)
1x HDMI-in 1.4
1x HDMI-out 2.1 TMDS
1x Ethernet (RJ-45)
1x power connector

Left Ports

1x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer only
1x headphone / microphone combo jack (3.5mm)

Security Chip

Firmware TPM 2.0 integrated in SoC

Physical Locks[1]

Optional Kensington Security Slot, 3 x 7 mm

Chassis Intrusion Switch

No chassis intrusion switch

Green Certifications

ErP Lot 3/7
GREENGUARD
RoHS / WEEE / REACH

Other Certifications

TÜV Rheinland Flicker Free
TÜV Rheinland Low Blue Light
TÜV Rheinland Ultra Low Noise

Operating System

None
